NeuNet Pro Menu Items
Table Of Contents

Menu Items

File

Edit

View

Run

Preferences

Help

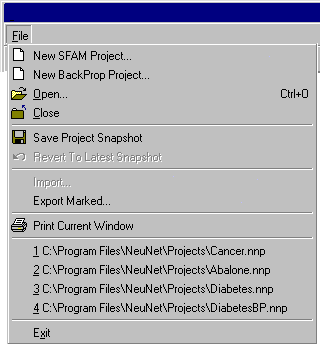

File Menu

Select a menu item

New SFAM Project New BackProp Project Open Close Save Project Snapshot Revert to Latest Snapshot Import Export Marked Print Current Window Recent Project List Exit

File... New SFAM Project
  • Choose a name to create a new SFAM project.
  • You will be delivered to the Run... Project Configuration screen where you will choose what database this project shall use.
  • ODBC connection can be activated if you select the check box titled 'Use ODBC'. You must have an ODBC driver installed.
  • The newly created project will have the extension .nnp (example: "Cancer.nnp")
  • If another project is currently open, it will be closed automatically.

File... New BackProp Project

  • Choose a name to create a a new BackProp project.
  • You will be delivered to the Run... Project Configuration screen where you will choose what database this project shall use.
  • ODBC connection can be activated if you select the check box titled 'Use ODBC'. You must have an ODBC driver installed.
  • The newly created project will have the extension .nnp (example: "Stocks.nnp")
  • If another project is currently open, it will be closed automatically.

File... Open

  • Choose a previous project.
  • You will be delivered to the View... Browse Test Data screen where you can review the results of the previous test data.
  • All of the project configuration settings, the best trained net and the results of recent test are stored in this project file.
  • If another project is currently open, it will be closed automatically.

File... Close

  • Closes the current project.
  • Projects are constantly saved, so there is no need to save a project before closing it.
  • NeuNet Pro will remain open with no current project loaded.

File... Save Project Snapshot
  • Saves a duplicate copy of the current project onto your hard drive.
  • This is a safety feature so you can experiment with your project. If your experiments are unsucccessful, you can easily revert to the most recent project snapshot.
  • Project snapshots are saved on the hard drive using the ".snap"> extension.

File... Revert to Latest Snapshot

  • Replaces the current project with the most recent snapshot for that project.
  • There is a warning that the current project will be permanently overwritten with its snapshot.

File... Import
  • This feature is available only when no project is currently loaded.
  • Select a comma delimited ASCII text file (or .raw file from older versions of NeuNet) and the file will be converted to MS-ACCESS (.mdb) format.
  • New projects can use the created .mdb file as their data source.
  • This feature is not useful to unlicensed users of Neunet Pro.

File... Export Marked

  • This feature is used to export all of the data rows which you have tagged with a checkmark.
  • The data records are written to a comma delimited ASCII text file.
  • The resulting file can be used by most word processors, text editors, spreadsheets and database programs.
  • This feature is useful when you are data mining and you wish to make a list of all the gold nuggets you find.

File... Print Current Window
  • This feature will send a screen grab of the current NeuNet Pro window to your printer.
  • Remember to select your desired view before pressing Print.

File... Recent Project List
  • This is a list of the most recent projects you have worked on.
  • Simply click a file from this list to load that project.
  • The size of this list may be set from 1 to 18 by using the Preferences menu.
  • The initial setup of NeuNet Pro populates this list with 8 sample projects.

File... Exit
  • This item is used to exit from the NeuNet Pro program.
  • The current project is always saved.
  • The program may also be exited by clicking the Close Button (X) at the right of the program title bar.
